SPECIFICATIONS

Application: Desktop,Laptop,Server,Workstation,Industrial computer

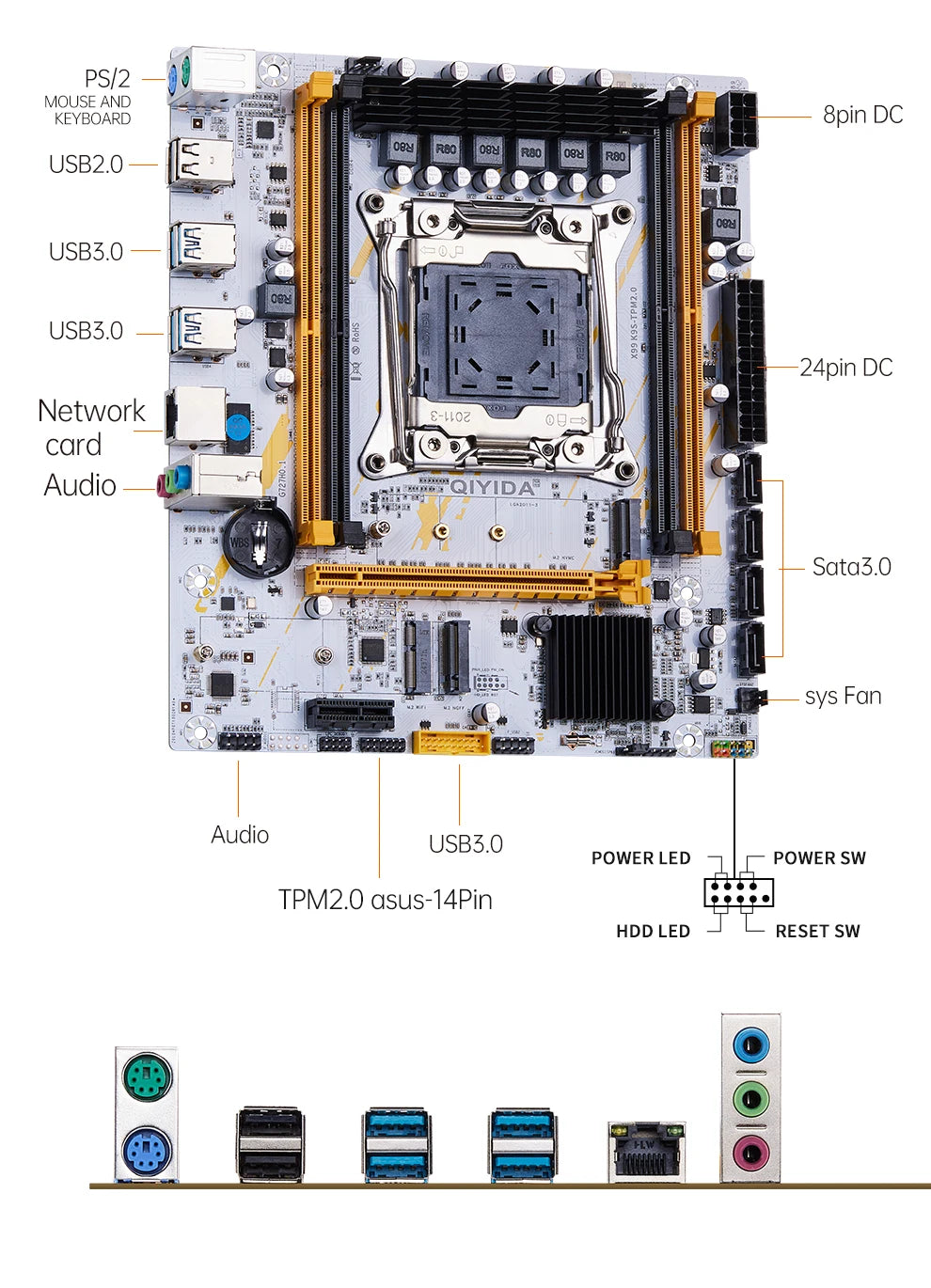

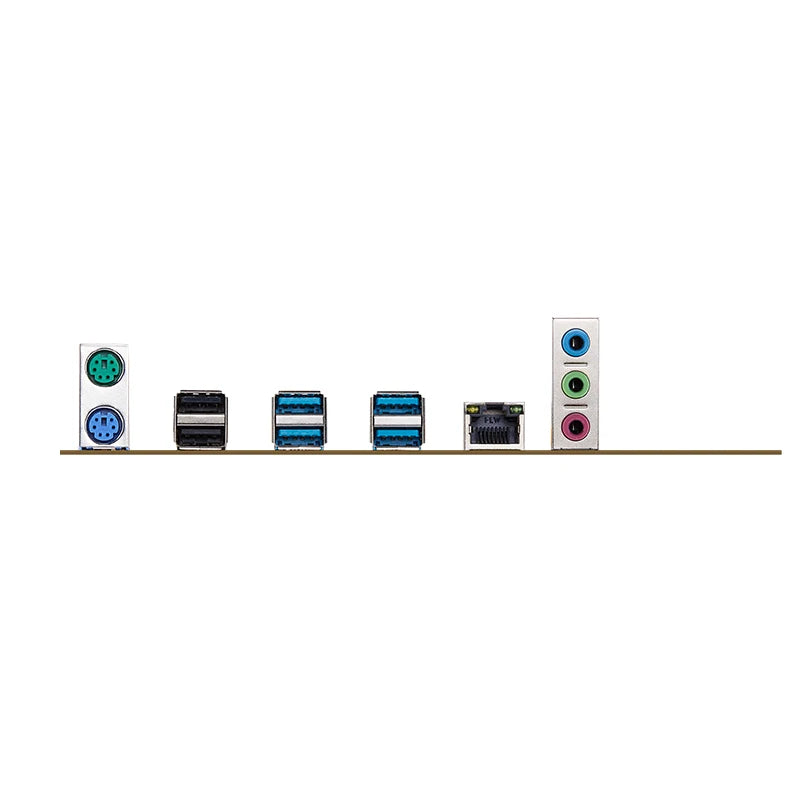

Back I/O Ports: 1x RJ45,3 x Audio Jacks,PS/2

Brand Name: QIYIDA

Chipset: Intel X99

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX

Hign-concerned Chemical: None

Maximum Ram Capacity: 128 GB

Number Of Memory Slots: 4

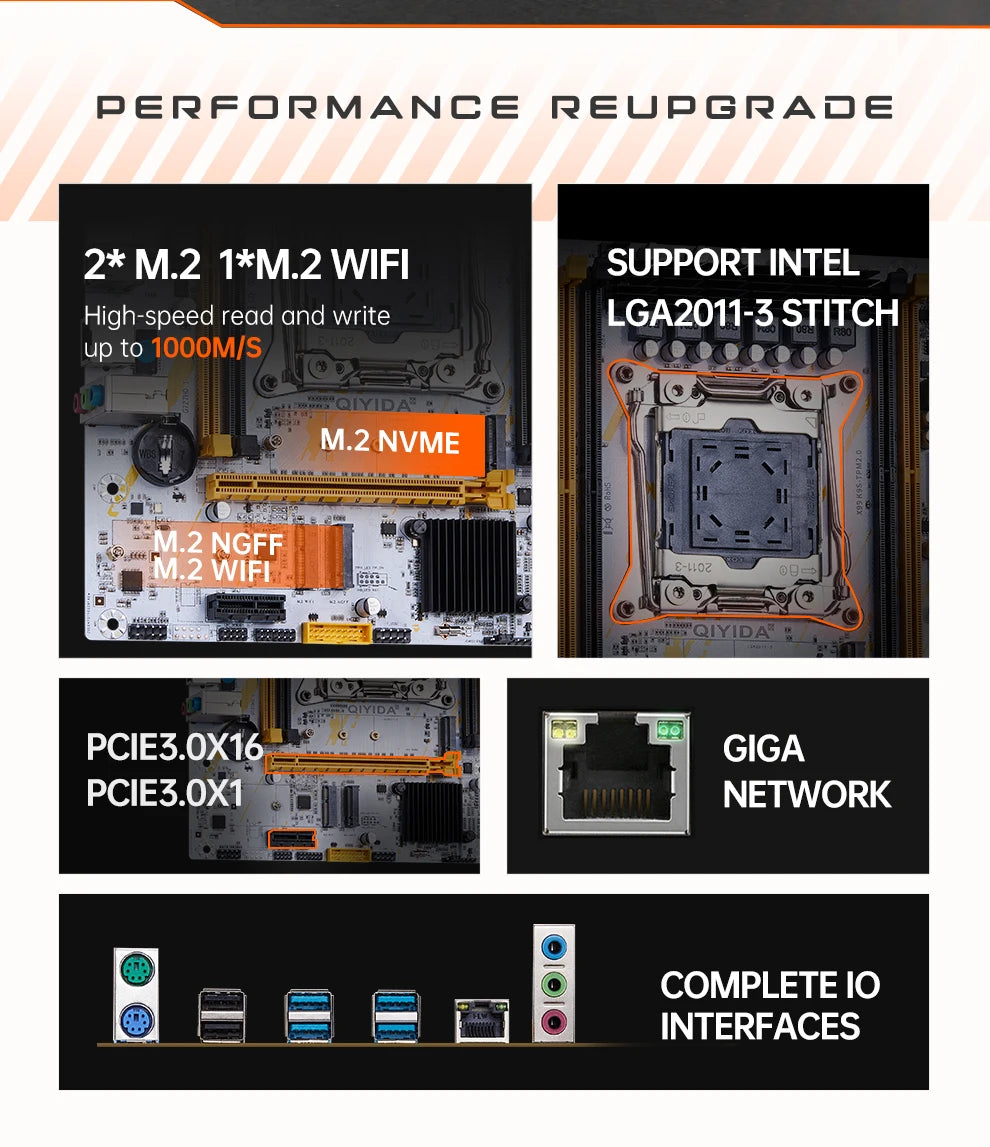

Number of M.2: 2

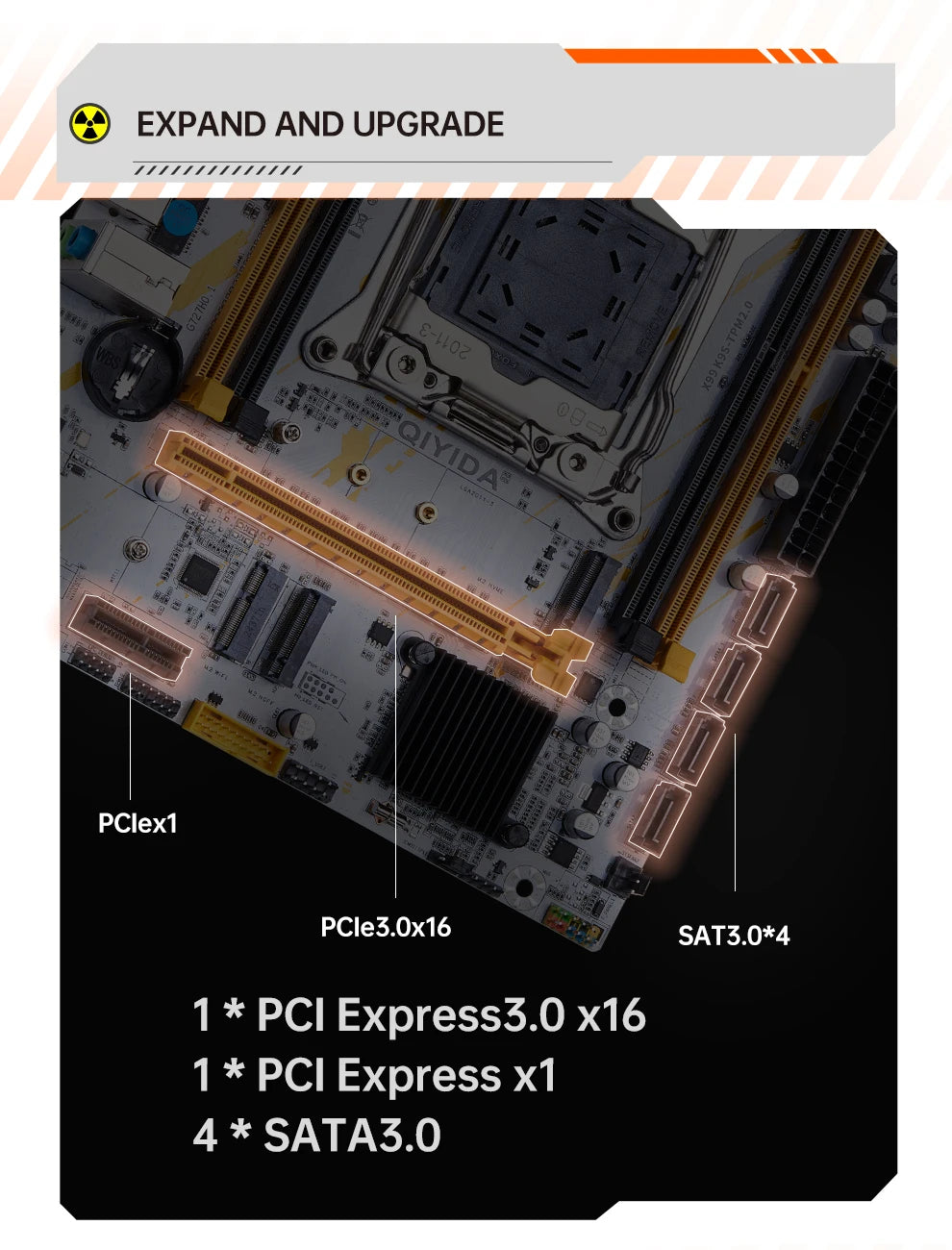

Number of PCI: 2

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI - E 3.0

Package: Yes

Processor compatibility: Intel Xeon,Intel 0thers,Intel Xeon E Series

RAID Supported: YES

Socket Type: LGA 2011-3

Special Function: Cooling Armor

Storage Interface Type: SATA 2,SATA 3,M.2 (NVMe),M.2(SATA)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Industrial computer,Workstation,Server,MINI PC,Mining,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute,others,HPC

With CPU: Yes

Note ：

Due to different production batch, motherboard might probably have slightly different design, such as different memory slots color or SATA ports position or motherboard version etc.  Our aim is to gradually make it more powerful.

We will not make any further notice..

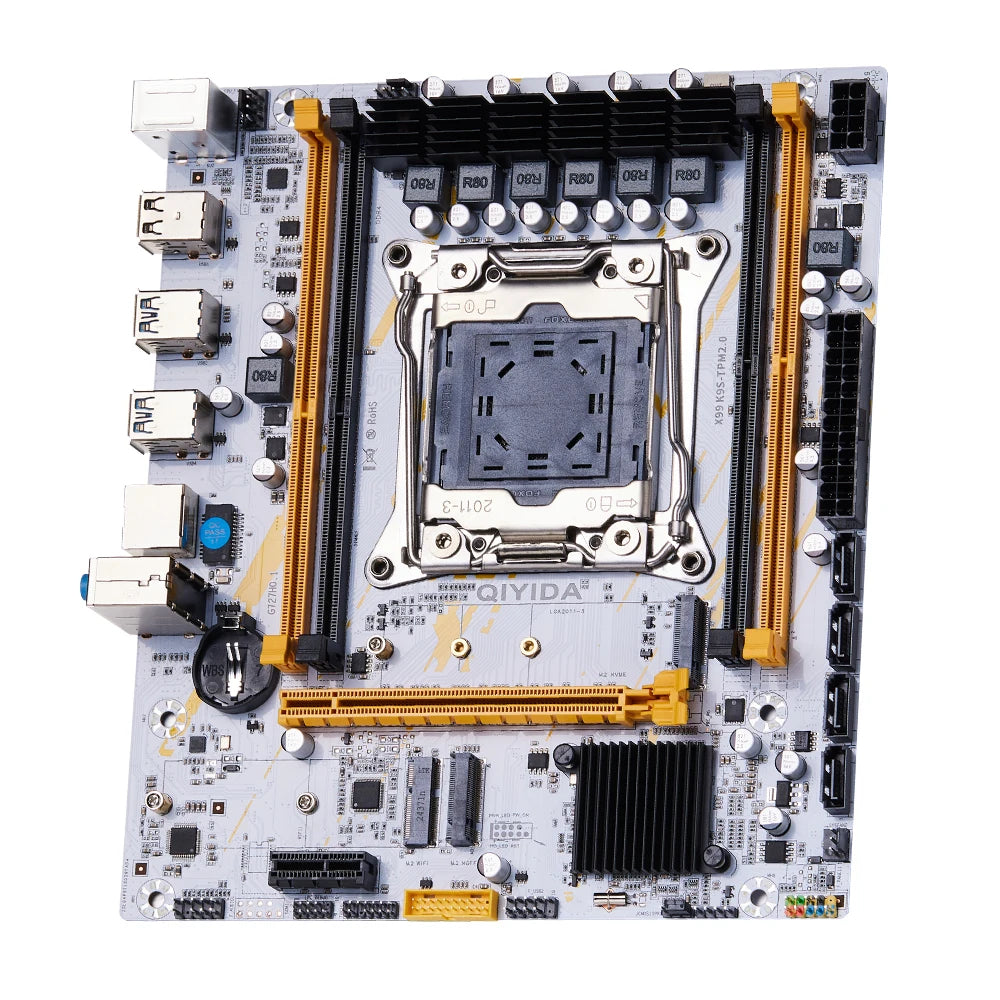

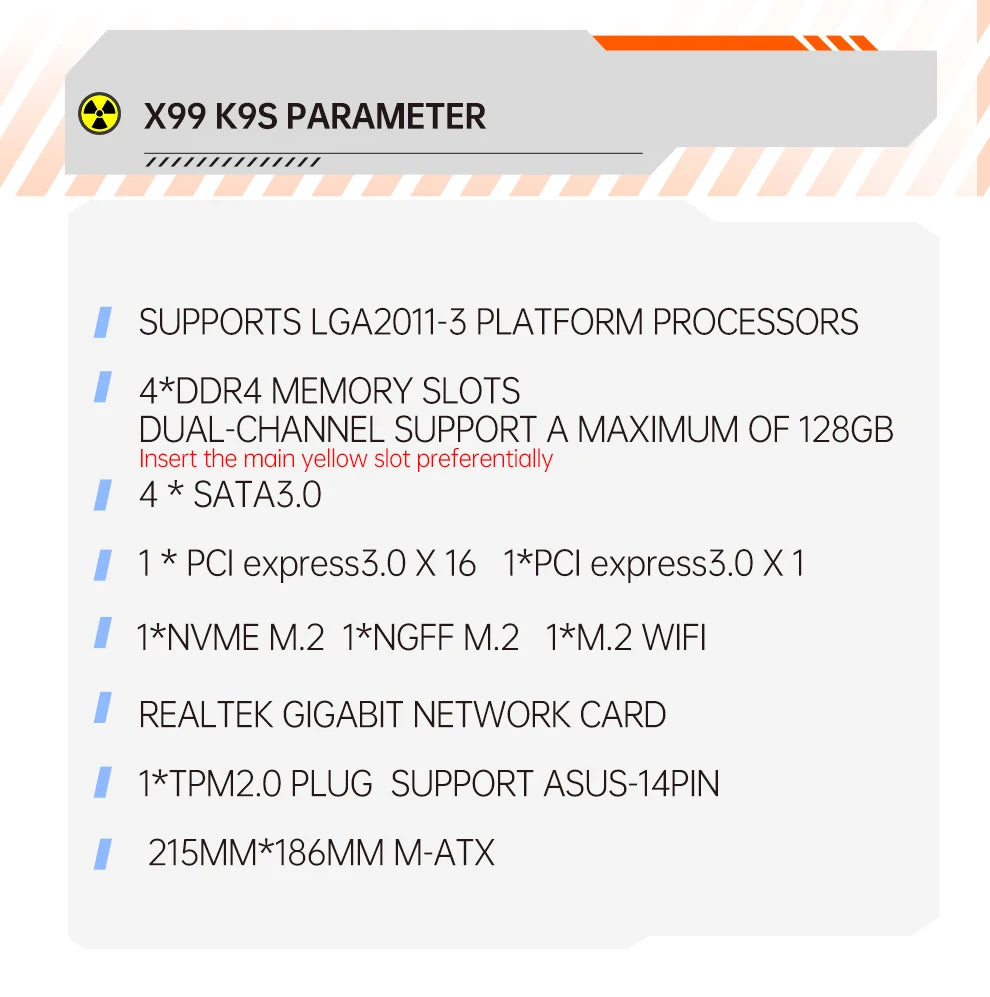

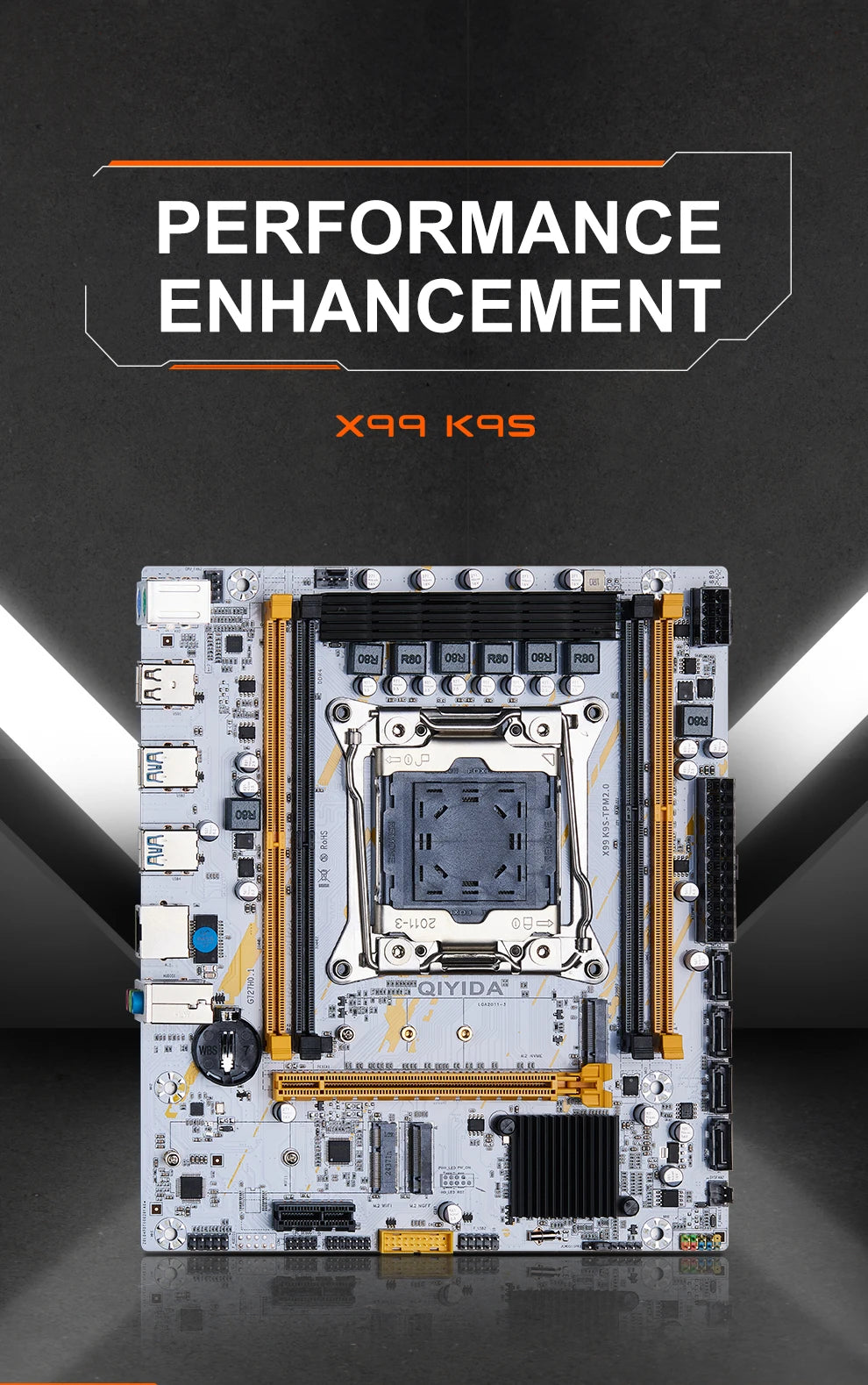

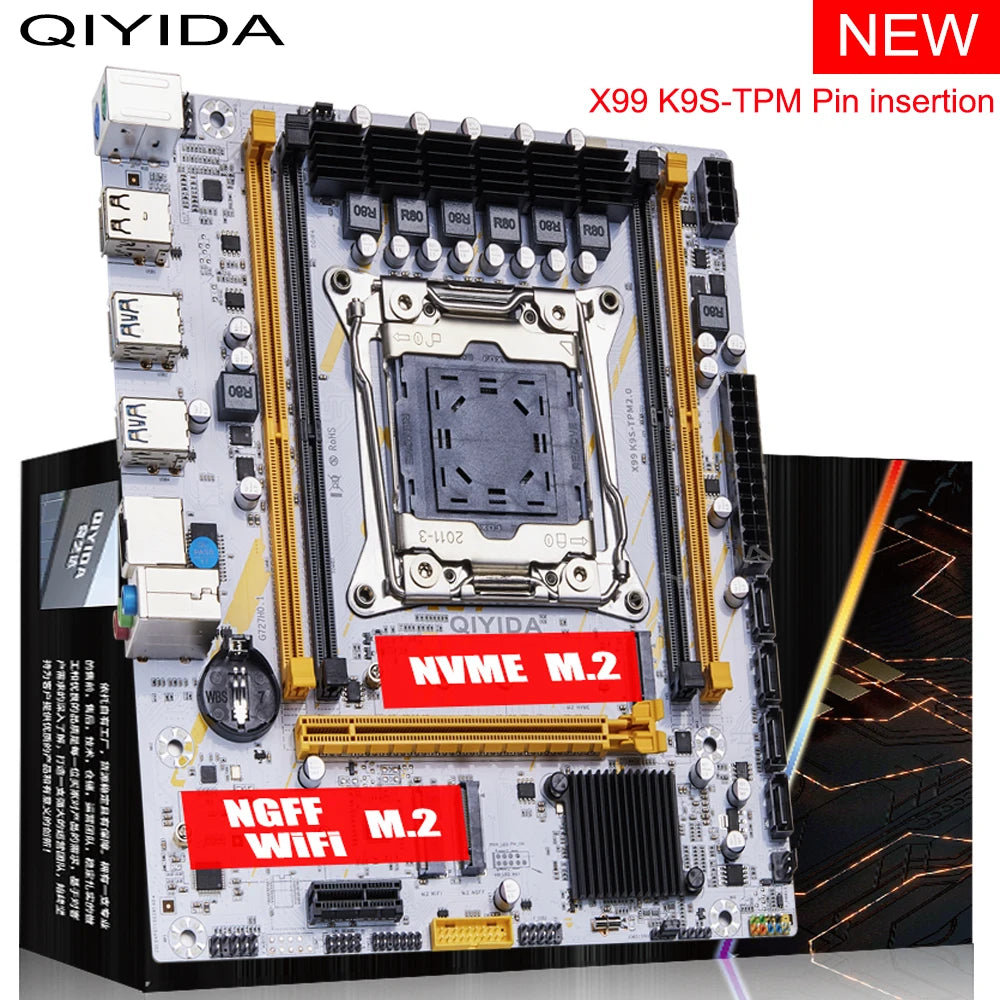

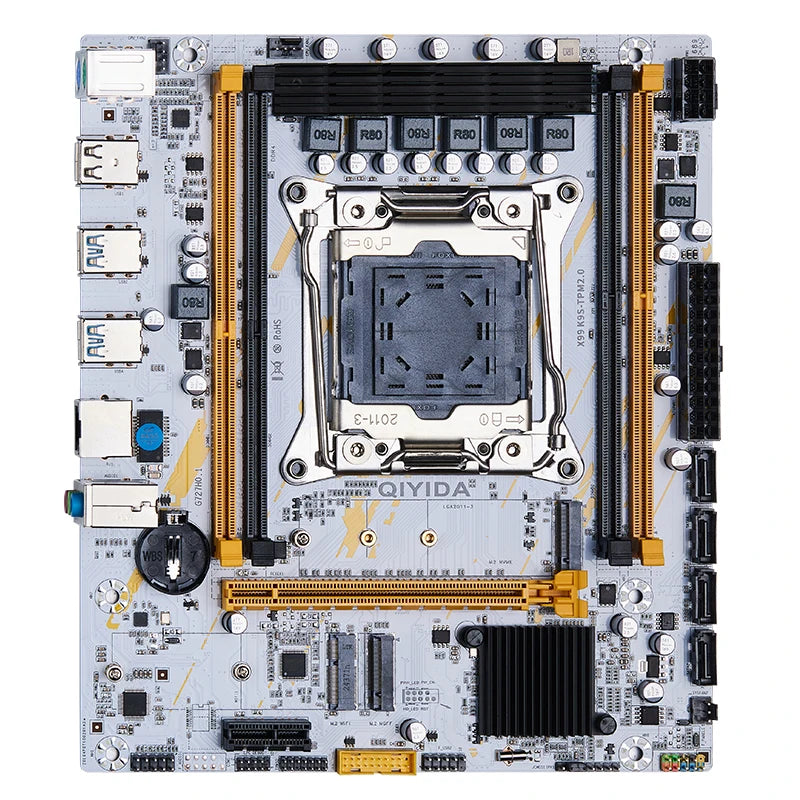

Model:QIYIDA X99 LGA2011-3

Condition: Full new

CPU socket: LGA 2011-3

Structure: M-ATX

VGA socket: PCI-E X 16

Power port: 24Pin+8pin

CPU supported:Support 2011-3 All-series CPU( Include V3, V4 series)

Memory socket: 4* DDR4

Max memory capacity: 4* 16G DDR4 2133/2400MHz/2666MHz/3200MHz

Memory type supported: non-ecc/reg ecc/ecc

Integrated video card: No

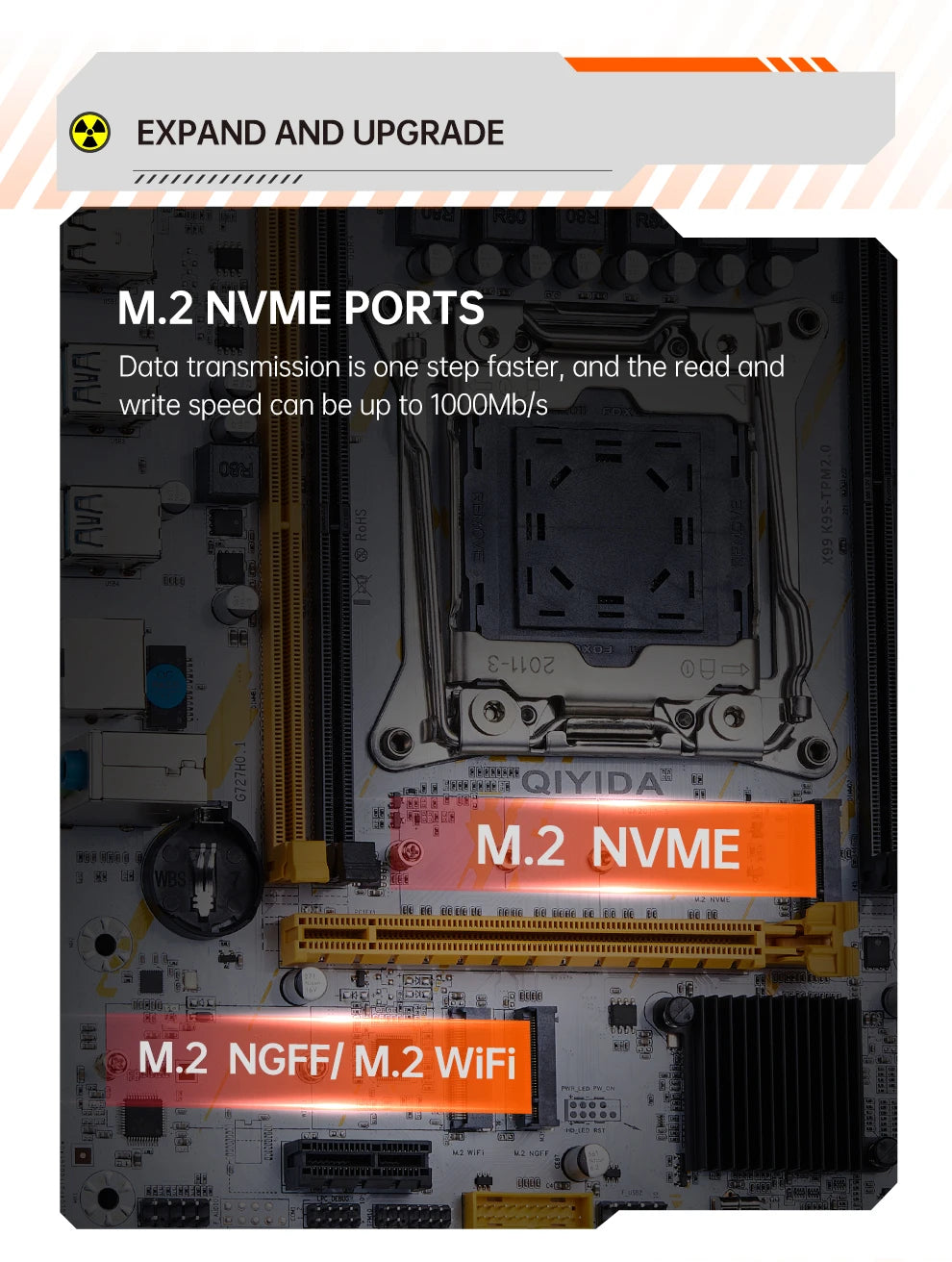

Support NVME/NGFF M.2. Note that they need to switch the jumpers on the motherboard

Motherboard dimension: 21.5cm*18.6cm

South bridge: Intel Panther point X99C612/H81/HM65/B75/P75/Q75/H77 etc.;  If you can't accept, please don't buy.

The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°)This is normal. The actual temperature can be tested with a body thermometer.

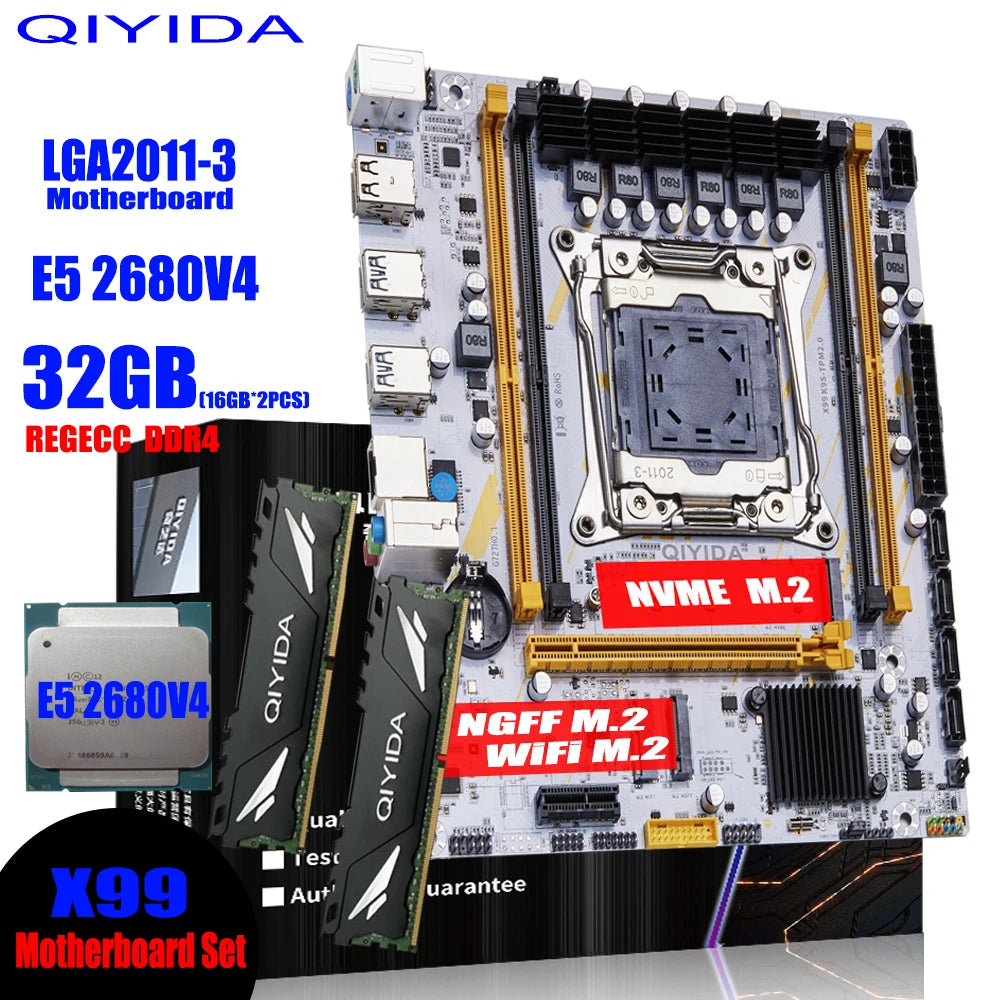

Please notice that:E5-2680V4 only top to support DDR4 2133Mhz. It means it will only shown 2133Mhz when install 3200Mhz. Please don’t place order if you mind.

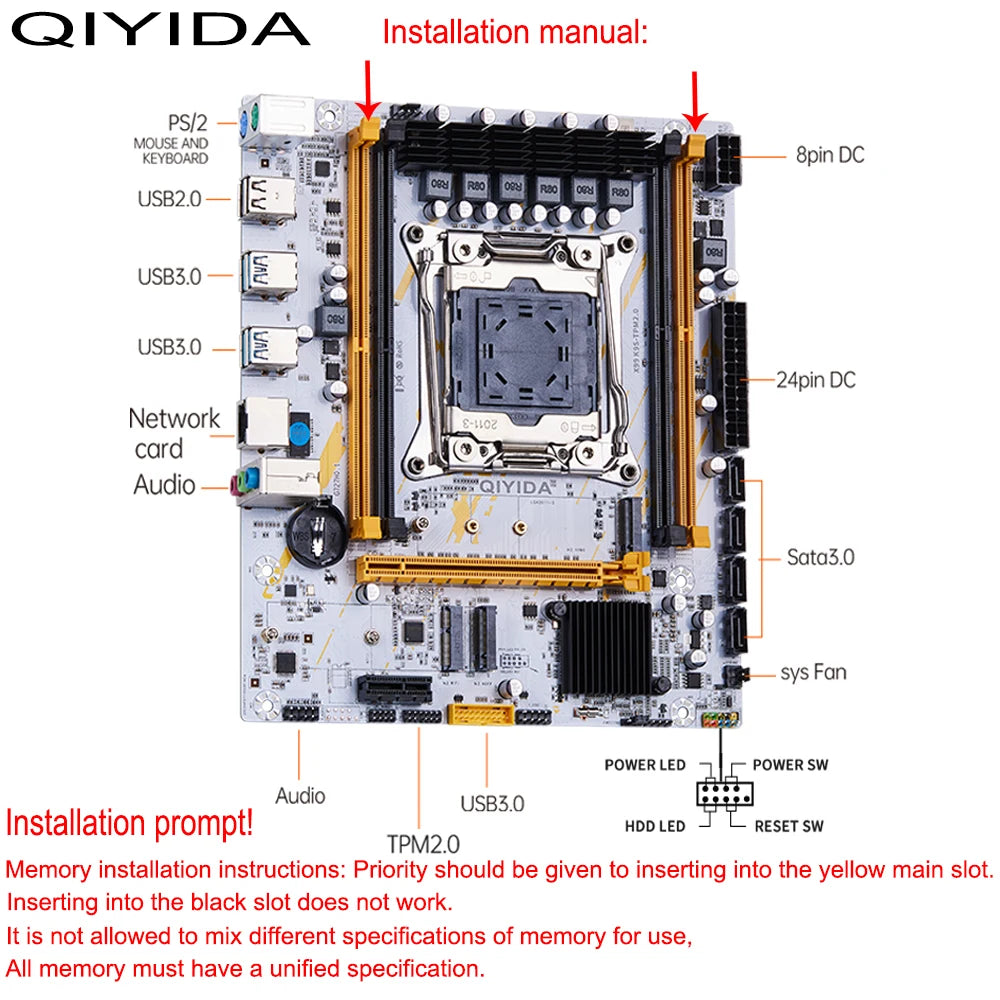

Notice for motherboard combine RAM

ALL RAM needs to install in slot(yellow slot)priority

The black ram slot of motherboard can't works alone.The memory needs to be inserted into the yellow main slot first.
